Quick Skan Gauges - Quality control width, height and squareness gauges.

Metric Units Gauges

Model Name	Measurement Size Range

Model M	Any size from 10 to 450 millimeters.
Model 5-640	Any size from 5 to 640 millimeters.
Model N	Any size from 200 to 640 millimeters.
Model 150-650	Any size from 150 to 650 millimeters.
Model Q	Any size from 230 to 1260 millimeters.
Model J	Any size from 380 to 1410 millimeters.
Model L	Any size from 410 to 1275 millimeters.
Model K	Any size from 665 to 1535 millimeters.
Model WR	Any size from 470 to 1500 millimeters.
Custom	Contact Quick Skan Gauges

Model M: 10 to 450 mm
The Model M measures length, width and squareness of any size sheet between 10 and 450 mm, to a hundredth of a millimeter.

$5500 USD

Model 5-640: 5 to 640 mm
This dimension gauge measures the length, width and squareness of any size sheet between 5 mm and 640 mm to a hundredth of a millimeter.
(Image not available at this time)

$6000 USD

Model N: 200 to 640 mm
The new Model N measures length, width and squareness of any size sheet between 200 and 640 mm, to a hundredth of a millimeter.

$6400 USD

Model 150-650: 150 to 650 mm
This dimension gauge measures the length, width and squareness of any size sheet between 150 mm and 650 mm to a hundredth of a millimeter.
(Image not available at this time)

$6600 USD

Model Q: 230 to 1260 mm
This dimension gauge measures the length, width and squareness of any size sheet between 230 mm and 1260 mm to a hundredth of a millimeter.
(Image not available at this time)

$9250 USD

Model J: 380 to 1410 mm
This new dimension gauge measures the length, width and squareness of any size sheet between 380 mm and 1410 mm to a hundredth of a millimeter.
(Image not available at this time)

$9500 USD

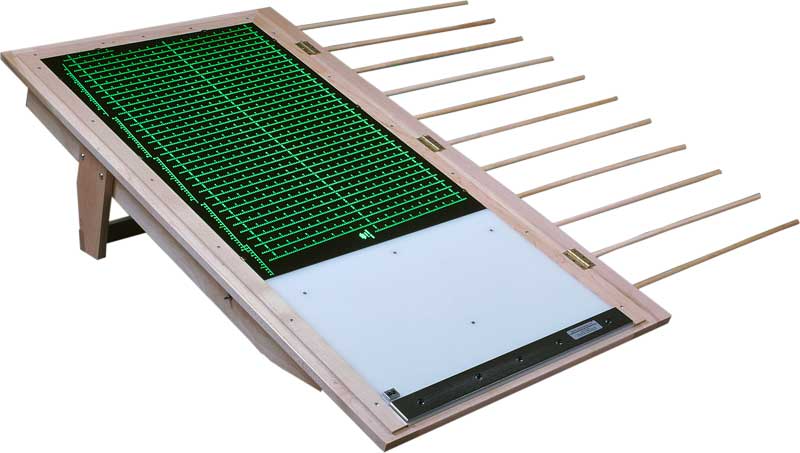

Model L: 410 to 1275 mm
Our most popular metric model, this folio-size metric gauge allows you to measure the length, width and squareness of any size sheet between 410 and 1275 mm, to a hundredth of a millimeter.

$8250 USD

Model K: 665 to 1535 mm
This is our largest standard sized metric gauge. The Model K will measure the length, width and squareness of any size sheet between 665 and 1535 mm, to a hundredth of a millimeter.

$9100 USD

Model WR: 470 to 1500 mm
This dimension gauge measures the length, width and squareness of any size sheet between 470 mm and 1500 mm to a hundredth of a millimeter.
(Image not available at this time)

$9500 USD

Custom Size Gauges
If the standard gauges do not suit your needs, contact Quick Skan Gauges with your dimensional needs to see if a custom gauge would be the answer.
